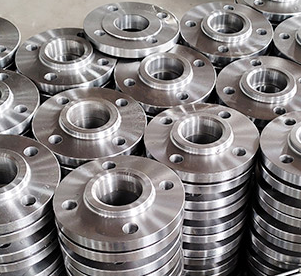

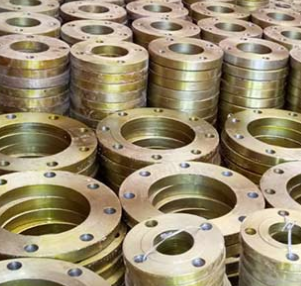

Product Photos




from my computer



from my computer

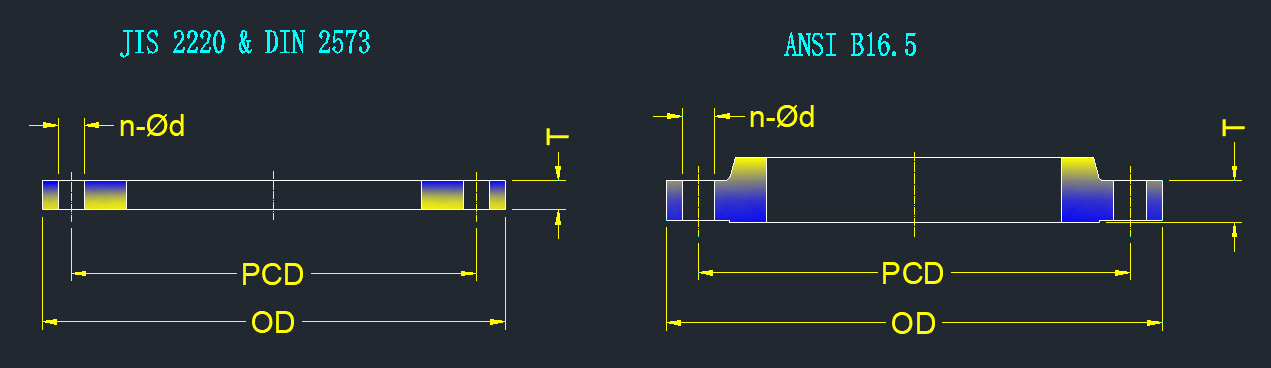

JIS2220. DIN2573 & ANSI B16.5 Flange Dimensions



(by Victory Technical Pte. Ltd.)




from my computer
ND15~40 JIS 5K JIS 10K JIS 16K DIN PN6 DIN PN10 DIN PN16 ANSI 150 ANSI 300
15 (1/2") OD 80 95 95 80 95 95 88.9 95.3
PCD 60 70 70 55 65 65 60.3 66.7
Hole no 4-Ø12 4-Ø15 4-Ø15 4-Ø12 4-Ø14 4-Ø14 4-Ø16 4-Ø16
T 9 12 12 12 14 14 11 14.3
20 (3/4") OD 85 100 100 90 105 105 98.4 117.5
PCD 65 75 75 65 75 75 69.5 82.6
Hole no 4-Ø12 4-Ø15 4-Ø15 4-Ø12 4-Ø14 4-Ø14 4-Ø16 4-Ø19
T 10 14 14 12 14 14 12.7 16
25 (1") OD 95 125 125 100 115 115 108 123.5
PCD 75 90 90 75 85 85 24 25
Hole no 4-Ø12 4-Ø19 4-Ø19 4-Ø12 4-Ø14 4-Ø14 4-Ø16 4-Ø19
T 10 14 14 14 16 16 14.3 17.5
32 (1-1/4") OD 115 135 135 120 140 140 117 133
PCD 90 100 100 90 100 100 88.9 98.6
Hole no 4-Ø15 4-Ø19 4-Ø19 4-Ø14 4-Ø18 4-Ø18 4-Ø15.7 4-Ø19.1
T 12 16 16 16 16 16 16 19
40 (1-1/2") OD 120 140 140 130 150 150 127 156
PCD 95 105 105 100 110 110 98.4 114.3
Hole no 4-Ø15 4-Ø19 4-Ø19 4-Ø14 4-Ø18 4-Ø18 4-Ø16 4-Ø22
T 12 16 16 14 16 16 19.1 20.6
ND50~125 JIS 5K JIS 10K JIS 16K DIN PN6 DIN PN10 DIN PN16 ANSI 150 ANSI 300
50 (2") OD 130 155 155 140 165 165 152 165
PCD 105 120 120 110 125 125 121 127
Hole no 4-Ø15 4-Ø19 8-Ø19 4-Ø14 4-Ø18 4-Ø18 4-Ø19 8-Ø19
T 14 16 16 14 18 18 19 22
65 (2-1/2") OD 155 175 175 160 185 185 178 190
PCD 130 140 140 130 145 145 140 149
Hole no 4-Ø15 4-Ø19 8-Ø19 4-Ø14 4-Ø18 4-Ø18 4-Ø19 8-Ø22
T 14 18 18 14 18 18 22 25.4
80 (3") OD 180 185 200 190 200 200 190 210
PCD 145 150 160 150 160 160 152 168
Hole no 4-Ø15 4-Ø19 8-Ø19 4-Ø18 4-Ø18 8-Ø18 4-Ø19 8-Ø22
T 14 18 20 16 20 20 24 28.6
100 (4") OD 200 210 225 210 220 220 229 254
PCD 165 175 185 170 180 180 190.5 200
Hole no 8-Ø19 8-Ø19 8-Ø23 4-Ø18 8-Ø18 8-Ø18 8-Ø19 8-Ø22.4
T 16 18 22 16 20 20 24 31.8
125 (5") OD 235 250 270 240 250 250 254 279
PCD 200 210 225 200 210 210 216 235
Hole no 8-Ø19 8-Ø23 8-Ø25 8-Ø18 8-Ø18 8-Ø18 8-Ø22.4 8-Ø22.4
T 16 20 22 18 22 22 24 35
ND150~350 JIS 5K JIS 10K JIS 16K DIN PN6 DIN PN10 DIN PN16 ANSI 150 ANSI 300
150 (6") OD 265 280 305 265 285 285 279 317.5
PCD 230 240 260 225 240 240 241 270
Hole no 8-Ø19 8-Ø23 12-Ø25 8-Ø18 8-Ø23 8-Ø23 8-Ø22.4 12-Ø22.4
T 18 22 24 18 22 26 25.4 36.5
200 (8") OD 320 330 350 320 340 340 343 381
PCD 280 290 305 280 295 295 298.5 330
Hole no 8-Ø19 8-Ø23 12-Ø25 8-Ø18 8-Ø23 8-Ø23 8-Ø22.4 12-Ø22.4
T 20 22 26 20 24 24 28.6 41
250 (10") OD 385 400 430 375 395 405 406 445
PCD 345 355 380 335 350 355 362 387
Hole no 12-Ø23 12-Ø25 12-Ø27 12-Ø18 12-Ø23 12-Ø27 12-Ø25.4 16-Ø29
T 22 24 28 22 26 26 30 47.5
300 (12") OD 430 445 480 440 445 460 483 521
PCD 390 400 430 395 400 410 432 451
Hole no 12-Ø23 16-Ø25 16-Ø27 12-Ø23 12-Ø23 12-Ø27 12-Ø25.4 16-Ø31.8
T 22 24 30 24 26 28 31.8 50.8
350 (14") OD 480 490 540 490 505 520 533 584
PCD 435 445 480 445 460 470 476 514
Hole no 12-Ø25 16-Ø25 16-Ø33 12-Ø23 16-Ø23 16-Ø27 12-Ø28.5 20-Ø31.8
T 24 26 34 26 28 30 35 53.8
ND400~600 JIS 5K JIS 10K JIS 16K DIN PN6 DIN PN10 DIN PN16 ANSI 150 ANSI 300
400 (16") OD 540 560 605 540 565 580 597 648
PCD 495 510 540 495 515 525 540 571.5
Hole no 16-Ø25 16-Ø27 16-Ø33 16-Ø23 16-Ø27 16-Ø30 16-Ø28.5 20-Ø35
T 24 28 38 28 32 32 36.5 57
450 (18") OD 605 620 675 595 615 640 635 711
PCD 555 565 605 550 565 585 578 629
Hole no 16-Ø25 20-Ø27 20-Ø33 16-Ø26 20-Ø26 20-Ø30 16-Ø31.8 24-Ø35
T 24 30 40 30 38 42 39.7 60
500 (20") OD 655 675 730 645 670 715 698.5 775
PCD 605 620 660 600 620 650 635 686
Hole no 20-Ø25 20-Ø27 20-Ø33 20-Ø23 20-Ø27 20-Ø36 20-Ø31.8 24-Ø35
T 24 30 42 28 38 46 42.8 63.5
550 (22") OD 720 745 * * * * 749.3 *
PCD 665 680 * * * * 692.1 *
Hole no 20-Ø27 20-Ø33 * * * * 20-Ø35 *
T 26 32 * * * * 46 *
600 (24") OD 770 795 845 755 780 840 813 914
PCD 715 730 770 705 725 770 749 813
Hole no 20-Ø27 24-Ø33 24-Ø39 20-Ø27 20-Ø33 20-Ø36 20-Ø35 24-Ø41.2
T 26 32 46 24 40 54 47.6 70
