Hydraulic Flange Dimensions



(by Victory Technical Pte. Ltd.)

Choose Type & Size of Flange:

210K SHA/B 210K SSA/B 280K SHA/B     DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80     Get Drawing                                Send Enquiry

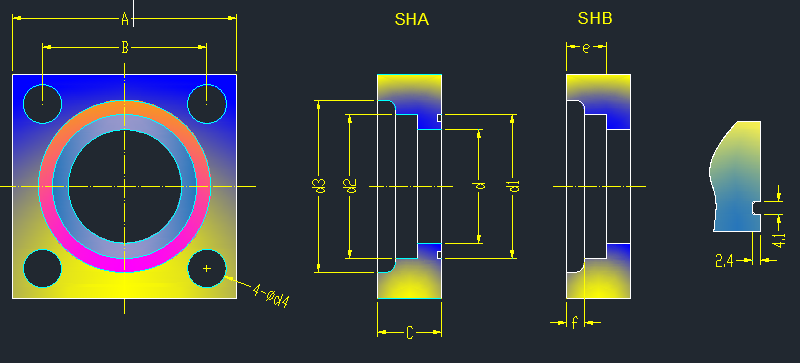

210K SHA/B

<

ND	A	B	C	d	d1	d2	d3	d4	e	f
15	63	40	22	16	30	22.2	32	11	11	3.5
20	68	45	22	20	35	27.2	38	11	12	4
25	80	53	28	25	40	34.5	45	13	14	4
32	90	63	28	31.5	45	43.2	56	13	16	6
40	100	70	36	37.	55	49.1	63	18	18	7
50	112	80	36	47.5	65	61.1	75	18	20	7
65	140	100	45	60	80	77.1	95	22	22	9.5
80	155	112	45	71	90	90	108	24	25	11

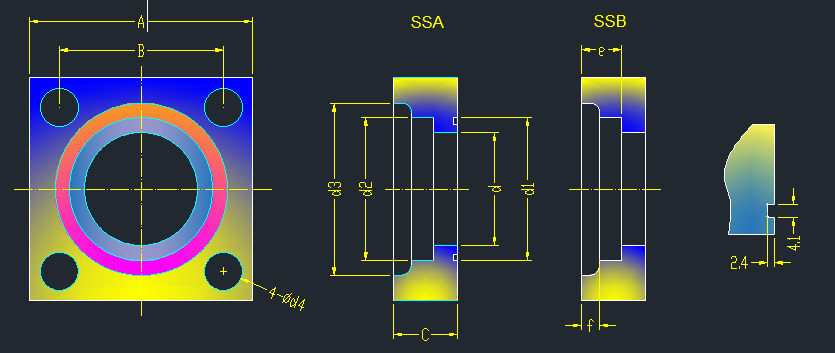

210K SSA/B

<

ND	A	B	C	d	d1	d2	d3	d4	e	f
15	54	36	22	16	30	22.2	32	11	11	3.5
20	58	40	22	20	35	27.2	38	11	12	4
25	68	48	28	25	40	34.5	45	13	14	4
32	76	56	28	31.5	45	43.2	56	13	16	6
40	92	65	36	37.	55	49.1	63	18	18	7
50	100	73	36	47.5	65	61.1	75	18	20	7
65	128	92	45	60	80	77.1	95	22	22	9.5
80	140	103	45	71	90	90	108	24	25	11

280K SHA/B

<

ND	A	B	C	d	d1	d2	d3	d4	e	f
15	66	43	22	12.3	24	22.2	34	11	12	4
20	75	48	25	16.2	30	27.7	40	11	12	4.5
25	85	58	35	21.2	35	34.5	48	13.5	14	5
32	98	68	35	29.9	45	43.2	60	17.5	18	6.5
40	105	74	40	34.4	50	49.1	66	17.5	20	7.5
50	130	90	50	43.1	60	61.1	79	22	20	8
65	150	108	60	57.3	75	77.1	100	24	25	10
80	170	120	65	66.9	85	90	114	26	25	12
